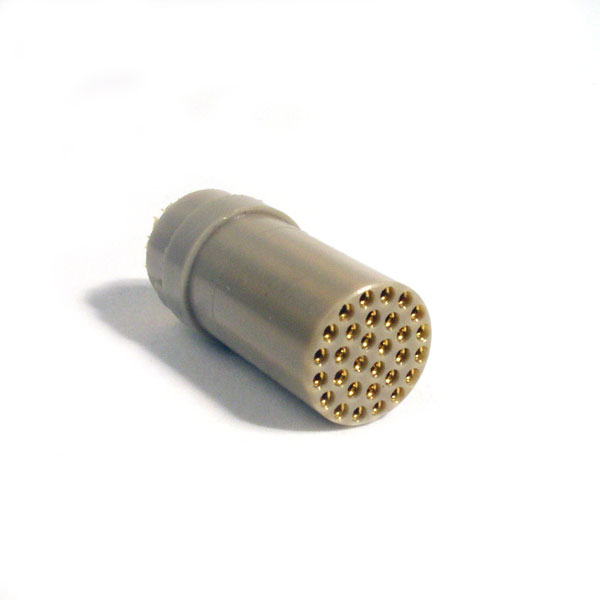

30 pin female low temperature connector
CMR/LF30 [02-31-033]
- Ideal for use with 12 pair twisted woven loom: loom available in niobium titanium, beryllium copper, copper and constantan.
- Approx 29.5mm length
- Approx. 12mm diameter at widest point
- Fits into 10.8mm mounting hole
- Mates with LM30 [02-31-037] connector
