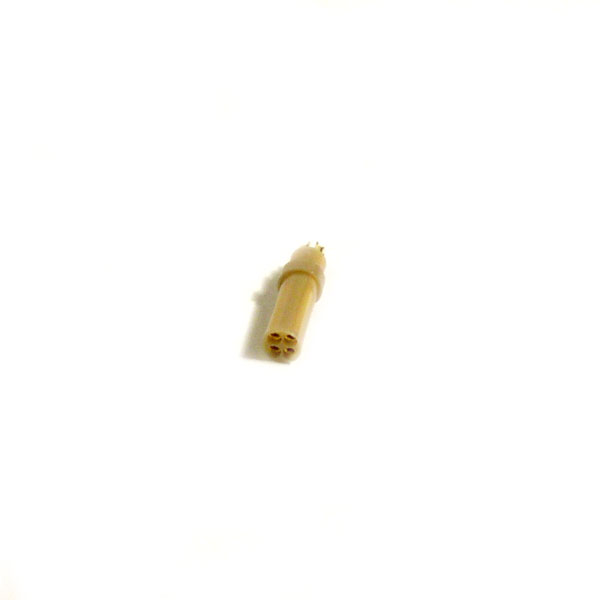

4 pin female low temperature connector
CMR/LF4 [02-31-034]
- Ideal for use with 2 pair twisted woven loom: loom available in niobium titanium, beryllium copper, copper and constantan.
- Approx. 14mm total length
- Approx 3.45mm diameter at widest point
- Fits into 2.9mm mounting hole
- Solder bucket termination
- Mates with LM4 [02-31-038] connector
