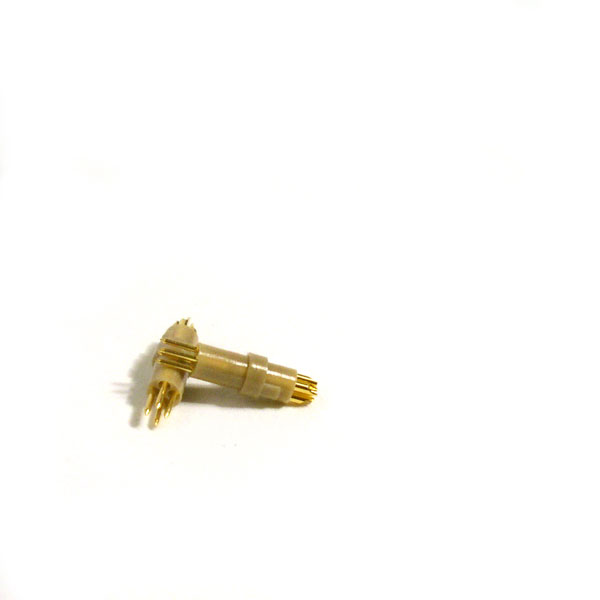

CMR/LM4
4 pin male low-temperature connector
[02-31-038]
- Ideal for use with 2 pair twisted woven loom: loom available in niobium titanium, beryllium copper, copper and constantan.
- Approx 13mm length, including pins
- Approx 3.45mm diameter at widest point
- Fits into 2.9mm mounting hole
- Solder bucket termination
- Mates with LF4 [02-31-034]
