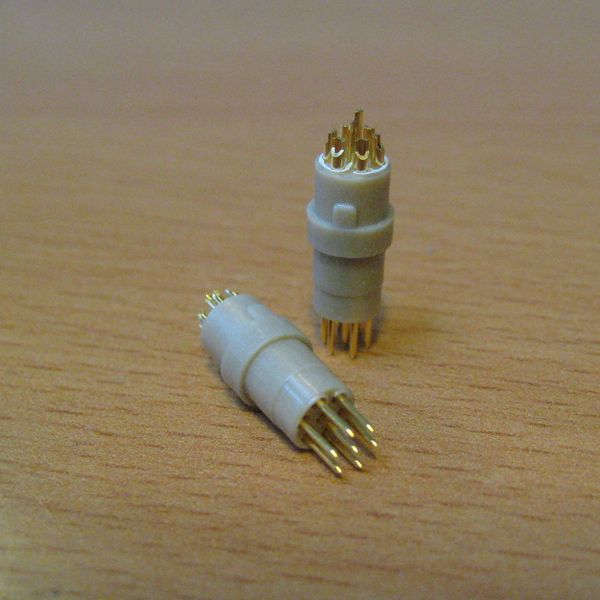

CMR-LM7
7 pin male low temperature connector
[02-31-039]
- Ideal for use with 2 pair twisted woven loom: loom available in niobium titanium, beryllium copper, copper and constantan.
- Approx. 17.1mm total length
- Approx. 5.6mm diameter at widest point
- Fits into 4.6mm mounting hole
- Solder bucket termination
- Mates with LF7 [02-31-040]
