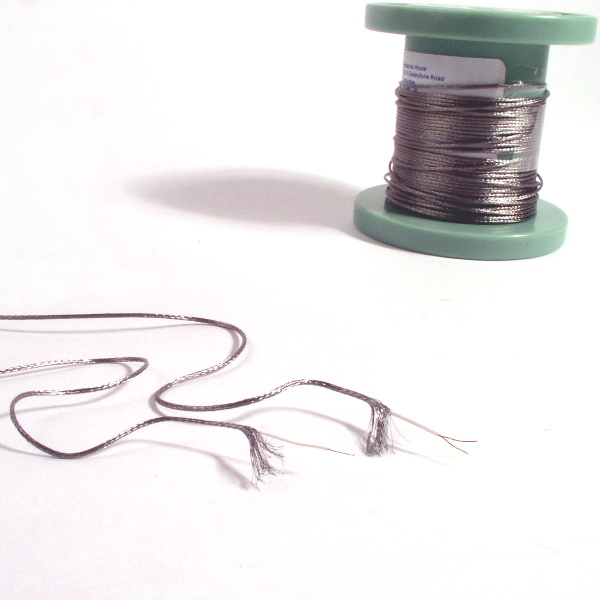

Miniature shielded cable - twisted pair Brass, 0.8mm braided CuNi shield, per metre

https://www.cmr-direct.com/web/image/product.template/453/image_1920?unique=bfbfd55 0.01 kg 02-32-053 CMR-Direct

CMR/MSC-2BR [02-32-053]

  • Teflon insulated central pair, easy-to-solder braided CuNi shield, overall 0.8mm diameter
  • Pair wires 8.1 ohm/m at RT, shield 5.5 ohm/m at RT. Cap. to shield 70pF/m, between wires 145 pF/m
  • Heat leak through 1m from 4.2K to 0K =0.06 microW, 1.5K = 0.01 microW
  • Priced per metre. Minimum continuous piece 1m.

£ 30.00 £ 30.00 30.0 GBP

£ 30.00
