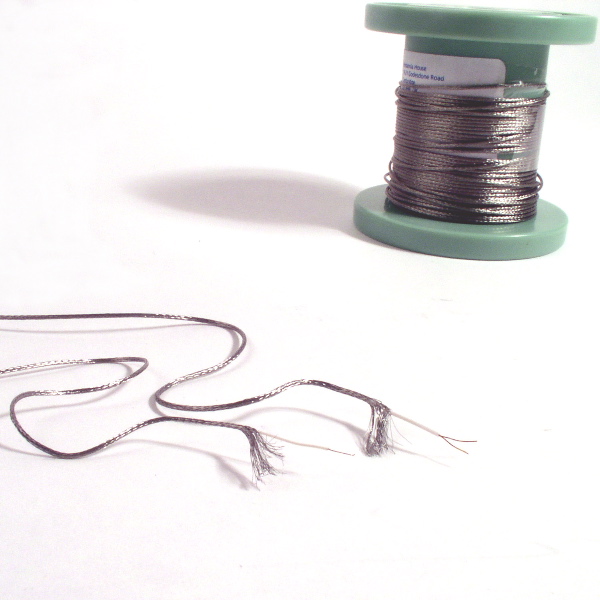

CMR/MSC-2NT
Miniature shielded cable - twisted pair NbTi (CuNi), teflon insulation with 0.8mm di. braided CuNi shield, priced per metre
[02-32-054]
- Easy-to-solder braided CuNi shield, overall 0.8mm diameter
- Pair wires 41 ohm/m at RT, shield 5.5 ohm/m at RT. Cap. to shield 70pF/m, between wires 145 pF/m
- Heat leak via 1m from 4.2K to 0K =0.06 microW, 1.5K = 0.01 microW
- Priced per metre. Minimum continuous piece 1m.
