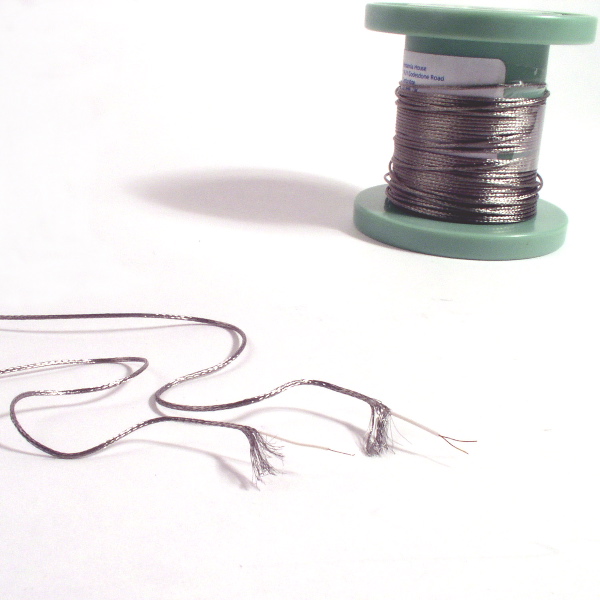

Miniature shielded cable - twisted pair NbTi (CuNi), 0.8mm braided CuNi shield, 5m length

https://www.cmr-direct.com/web/image/product.template/458/image_1920?unique=7b638bc 0.1 kg 02-32-058 CMR-Direct

CMR/MSC-2NT/5m [02-32-058]

  • Teflon insulated central pair, easy-to-solder braided CuNi shield, overall 0.8mm diameter
  • Pair wires 41 ohm/m at RT, shield 5.5 ohm/m at RT. Cap. to shield 70pF/m, between wires 145 pF/m
  • Heat leak via 1m from 4.2K to 0K =0.06 microW, 1.5K = 0.01 microW
  • Special price for single continuous 5m length on spool

£ 162.60 £ 162.60 162.6 GBP

£ 162.60
