Cryogenic Wiring

Cryogenic wiring requires careful selection of wire materials and heatsinking components to provide the lowest heat-leak into the low temperature environment whilst maintaining measurement integrity.

Our cryogenic wire types include Constantan, Copper, BeCu, Manganin and NbTi superconducting wire and all are available woven in Cryoloom® ribbon cables for cryo wiring interconnects on dilution refrigerator, He3 and sub-4K measurement systems.

[02-32-051] CMR/MSC-1BR

CMR-MSC-1BR [02-32-051]

CMR/MSC-1BR

Miniature shielded cable - single wire Brass, 0.8mm braided CuNi shield, per metre

$ 45.82

[02-32-087] CMR-Polyimide50mm

CMR-Polyimide50mm [02-32-087]

CMR-Polyimide50mm

50 mm wide Polyimide adhesive tape - 33m roll

$ 48.72

[02-32-053] CMR/MSC-2BR

CMR-MSC-2BR [02-32-053]

CMR/MSC-2BR

Miniature shielded cable - twisted pair Brass, 0.8mm braided CuNi shield, per metre

$ 49.01

[02-32-052] CMR/MSC-1NT

CMR-MSC-1NT [02-32-052]

CMR/MSC-1NT

Miniature shielded cable - single wire NbTi (CuNi Clad), 0.8mm braided CuNi shield, per metre

$ 49.88

[02-32-030] CMR-Heatshrink-1/4-5m

Cryogenic heatshrink - 1/4 inch (6.4mm) preshrunk di. - 5m Length

CMR-Heatshrink-1/4-5m

1/4in clear PTFE heatshrink - shrinks 6.4mm -> 3.2mm diameter, 5m length

$ 52.20

[02-32-007] CMR/CWL-2CU

CMR-CWL-2CU [02-32-007]

CMR/CWL-2CU

Cryoloom® cryogenic woven loom - 2 twisted pairs Copper (42 SWG)

$ 52.20

[02-32-008] CMR/CWL-2CO

CMR-CWL-2CO [02-32-008]

CMR/CWL-2CO

Cryoloom® cryogenic woven loom - 2 twisted pairs Constantan (42 SWG)

$ 54.81

[02-32-054] CMR/MSC-2NT

CMR-MSC-2NT [02-32-054]

CMR/MSC-2NT

Miniature shielded cable - twisted pair NbTi (CuNi), 0.8mm braided CuNi shield, per metre

$ 55.68

[02-32-003] CMR/CWL-12CU

CMR-CWL-12CU [02-32-003]

CMR/CWL-12CU

Cryoloom® cryogenic woven loom - 12 twisted pairs Copper (42 SWG)

$ 60.32

[02-01-901] CMR/HeatsinkKit

Product disassembled

CMR/HeatsinkKit

CMR LT Electrical System - Gold plated heatsink post

$ 62.06

[02-32-005] CMR/CWL-2BC

CMR-CWL-2BC [02-32-005]

CMR/CWL-2BC

Cryoloom® cryogenic woven loom - 2 twisted pairs Beryllium Copper (42 SWG)

$ 63.51

[02-32-002] CMR/CWL-12CO

CMR-CWL-12CO [02-32-002]

CMR/CWL-12CO

Cryoloom® cryogenic woven loom - 12 twisted pairs Constantan (42 SWG)

$ 63.80

[02-39-034] CMR/MolyWashM6 (Pack 10)

CMR-MolyWashM6 [02-39-024]

CMR/MolyWashM6 (Pack 10)

Molybdenum washers for M6 screws, Pack of 10 washers, priced per Pack

$ 65.25

[02-32-028] CMR-Heatshrink-3/8-5m

Cryogenic heatshrink - 3/8 inch (9.5mm) preshrunk di. - 5m length

CMR-Heatshrink-3/8-5m

3/8in clear PTFE heatshrink - shrinks 9.5mm -> 4.8mm diameter, 5m length

$ 65.54

[02-31-036] CMR/LM24

Connector shown as part of a diagnostic assembly

CMR/LM24

24 pin male Low-Temperature connector

$ 68.73

[02-32-013] CMR/CX-SS25

CMR-CX-SS25 [02-32-013]

CMR/CX-SS25

Ultra flexible braided stainless steel coax - 0.7mm outer diameter

$ 69.89

[02-32-006] CMR/CWL-2NT

Loom shown as part of LT assembly

CMR/CWL-2NT

Cryoloom® cryogenic woven loom - 2 twisted pairs Cupro-nickel clad Niobium Titanium (42 SWG)

$ 70.76

[02-32-029] CMR-Heatshrink-1/2-5m

Cryogenic heatshrink - 1/2 inch (12.7mm) preshrunk di. - 5m Length

CMR-Heatshrink-1/2-5m

1/2in clear PTFE heatshrink - shrinks 12.7mm -> 6.4mm diameter, 5m length

$ 76.85

[02-31-032] CMR/LF24

Connector shown as part of mF/Sampleboard assembly

CMR/LF24

24 pin female low-temperature connector

$ 76.85

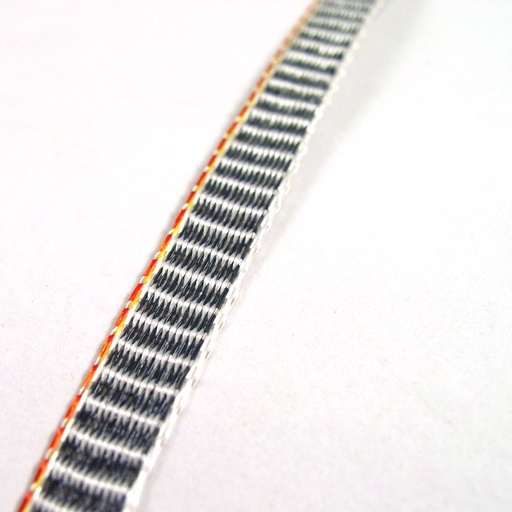

[02-32-001] CMR/CWL-12BC

Loom shown as part of a wiring assembly

CMR/CWL-12BC

Cryoloom® cryogenic woven loom - 12 twisted pairs Beryllium Copper (42 SWG)

$ 87.58
